Widely used in warehouses, stations, ports, airports, freight yards, distribution centers, and other locations, and capable of entering ship holds, carriages, and containers, it performs loading, unloading, stacking, destacking, and short-distance handling of packaged goods, pall

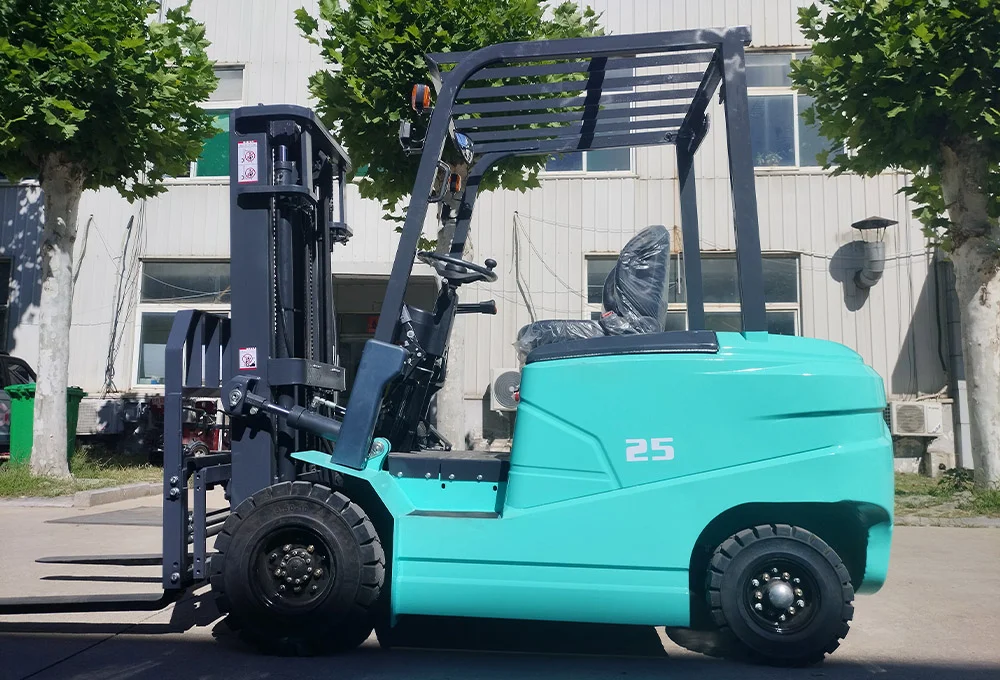

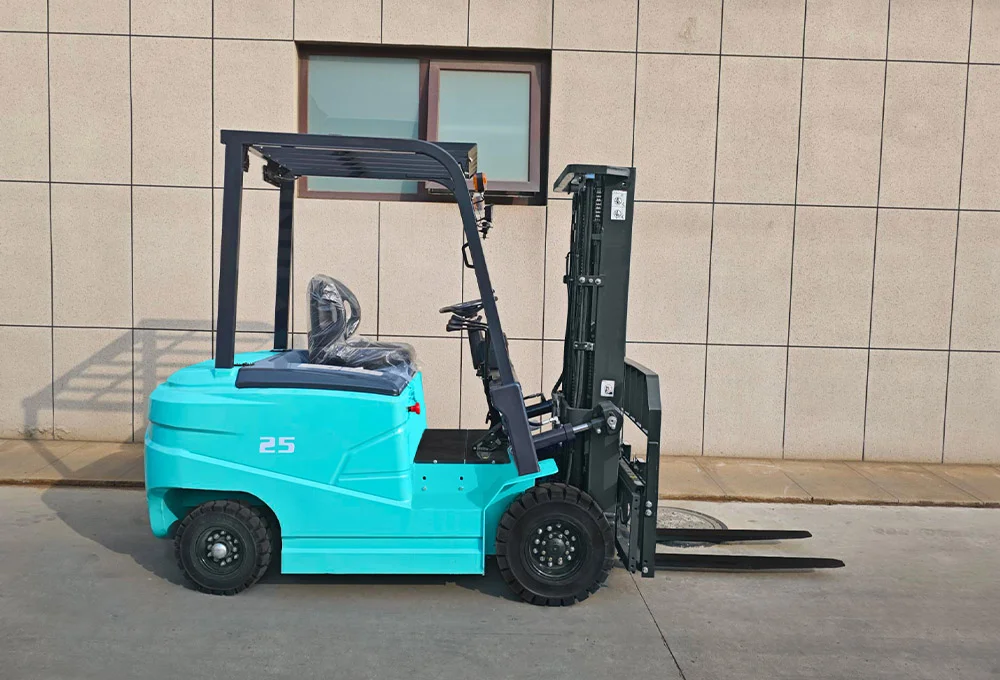

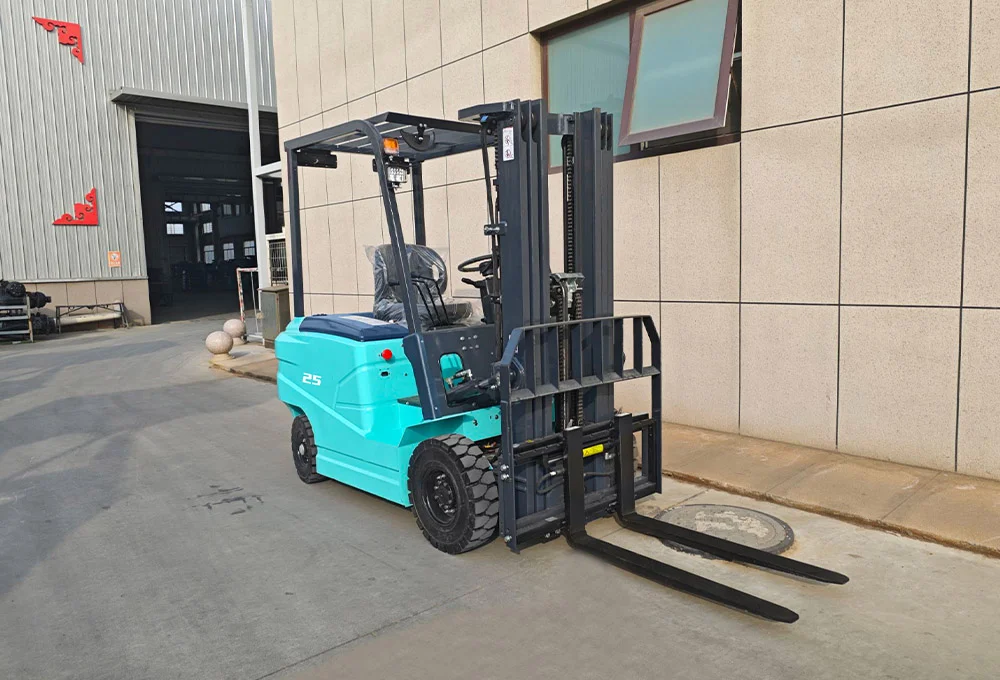

3.5-Ton Off-Road Forklift Truck
RF25E
Widely used in warehouses, stations, ports, airports, freight yards, distribution centers, and other locations, and…
Product Description
Widely used in warehouses, stations, ports, airports, freight yards, distribution centers, and other locations, and capable of entering ship holds, carriages, and containers, it performs loading, unloading, stacking, destacking, and short-distance handling of packaged goods, pallets, and containers. It is an indispensable piece of equipment for pallet and container transport.
Product Data
| MCDEL | RF15E |
| Parameters | |
| Power type | Electnic |
| Total weight | 573216 |
| Rated load capacity | 33001b |
| Load center distance | 19.7in |
| Lifting height | 118in |
| Minimum ground clearanoe | 5.9in |
| Maximum gradeability | 10% |
| Trawel speed | 7.5mph |
| Front overhang | 13.9in |
| Rear overmang | 13.8 |
| Fork separalion distance | 39.4in |
| Mast forward tit angle | 6 |
| Mastbackward flt angle | 12 |
| Minimum turning radius | 90.5in |
| Fork size | 42.11.84.7in |
| Battery specification | 60V75Ah |
| Drive motor power | 3KWAC motor |
