It is mainly applied to shovel, load, unload and convey bulk materials including soil and stones. It can also carry out light excavation on rocks and hard soil. By replacing different working attachments, it can realize bulldozing, hoisting and handling of other goods.

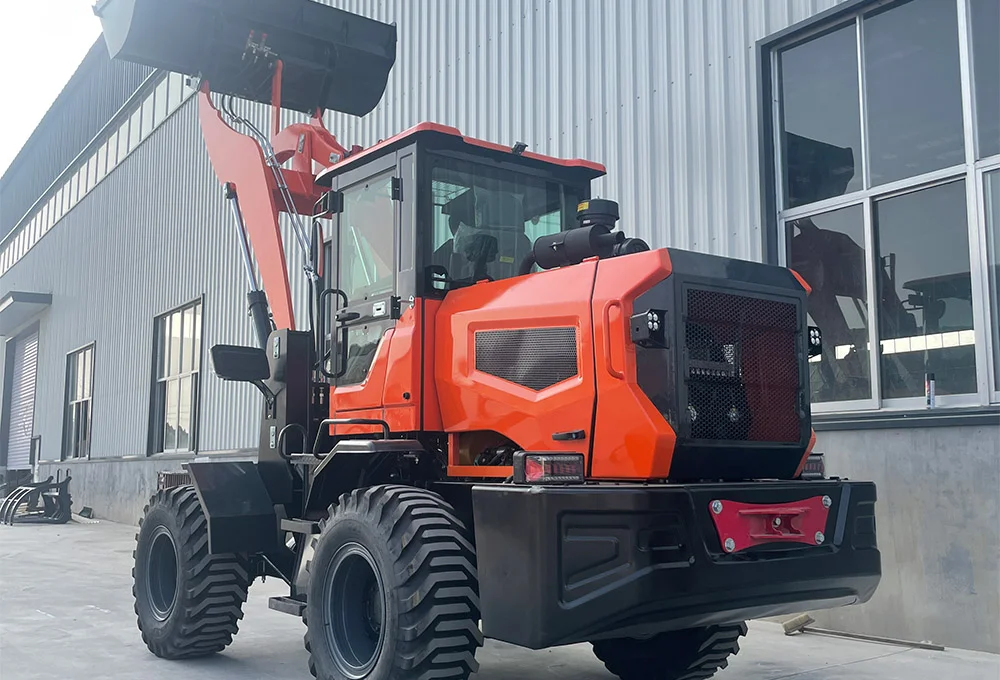

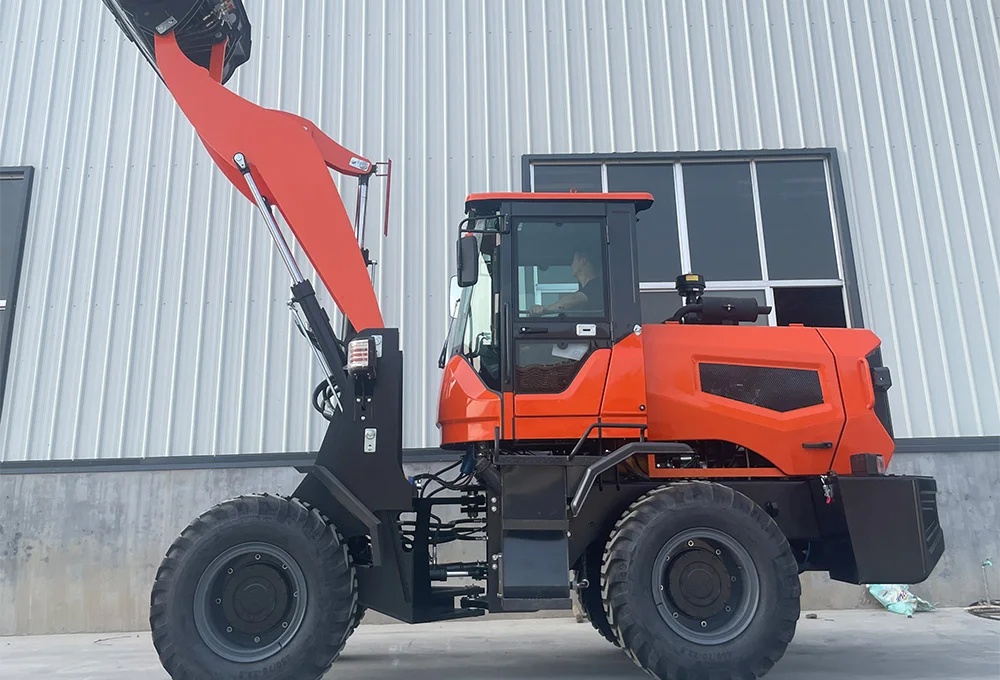

FD20
FD20
It is mainly applied to shovel, load, unload and convey bulk materials including soil and stones.
Item: Specification
Rated Load: 2000KG
Machine Weight: 4100KG
Bucket Capacity: 1M³
Bucket Width: 2M
Travel Speed: 35mph
Fuel Tank Capacity: 80L
Hydraulic Tank Capacity: 80L
Product Description
It is mainly applied to shovel, load, unload and convey bulk materials including soil and stones. It can also carry out light excavation on rocks and hard soil. By replacing different working attachments, it can realize bulldozing, hoisting and handling of other goods.
Product Data
| Item | Specification |
| Rated Load | 2000KG |
| Machine Weight | 4100KG |
| Bucket Capacity | 1M³ |
| Bucket Width | 2M |
| Travel Speed | 35mph |
| Fuel Tank Capacity | 80L |
| Hydraulic Tank Capacity | 80L |
| Boom Thickness | 30MM |
| Dump Height | 3500MM |
| Wheel Track | 1780MM |
| Wheelbase | 2450MM |
| Maximum Steering Angle | ±30° |
| Gradeability | 30° |
| Minimum Ground Clearance | 300MM |
| Overall Dimensions | 5800*2000*2850(MM) |
| Engine Model | 4102 Turbocharged Engine |
| Power | 78KW |
| Number of Cylinders | 4 |
| Gearbox | 265 Split-Type Gearbox |
| Drive Axle | Mid Wheel-Reduction Axle |
| Braking System | Air Brake |
| Tire Model | 16/70-20 |
