Small skid steer loaders suit narrow, rugged and frequently changing working sites. Ideal for infrastructure construction, industrial operations, dock loading, urban roads, residences, barns, livestock houses and airport runways. It also serves as auxiliary equipment for large co

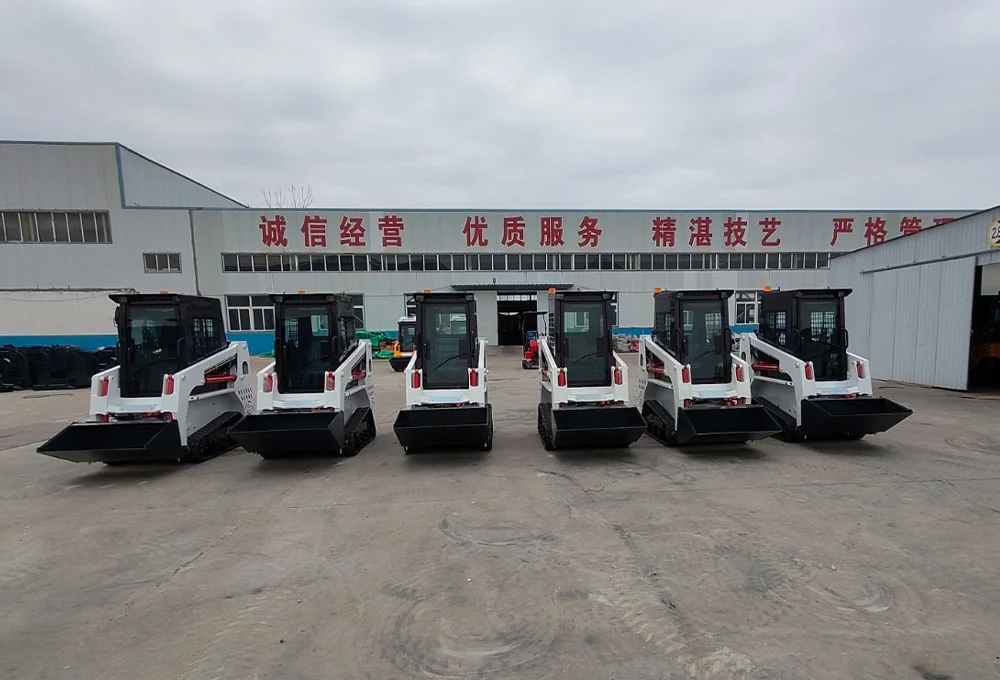

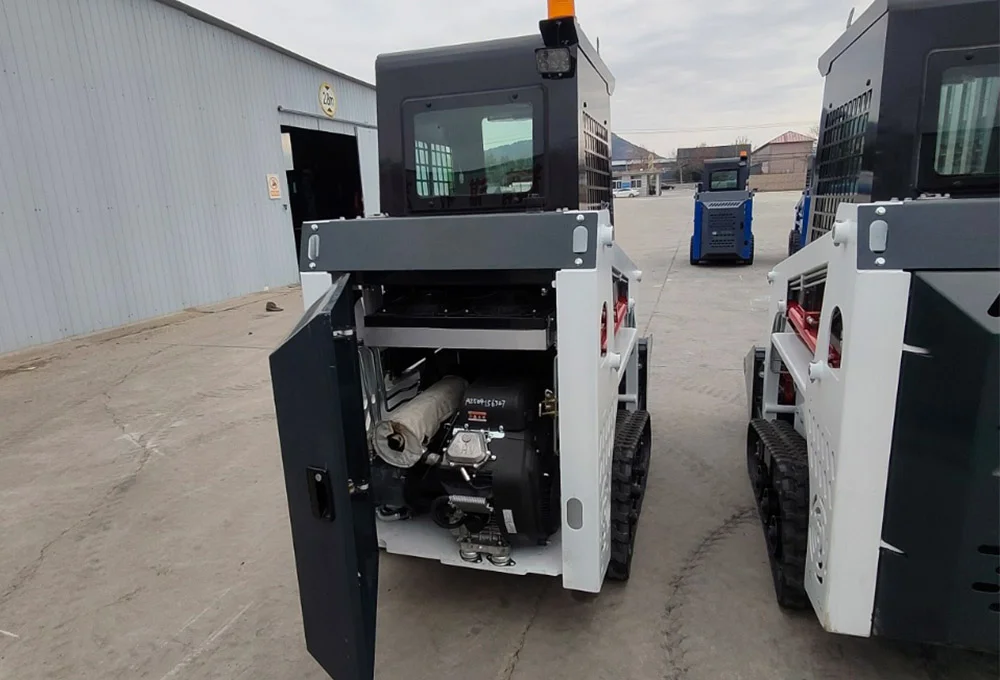

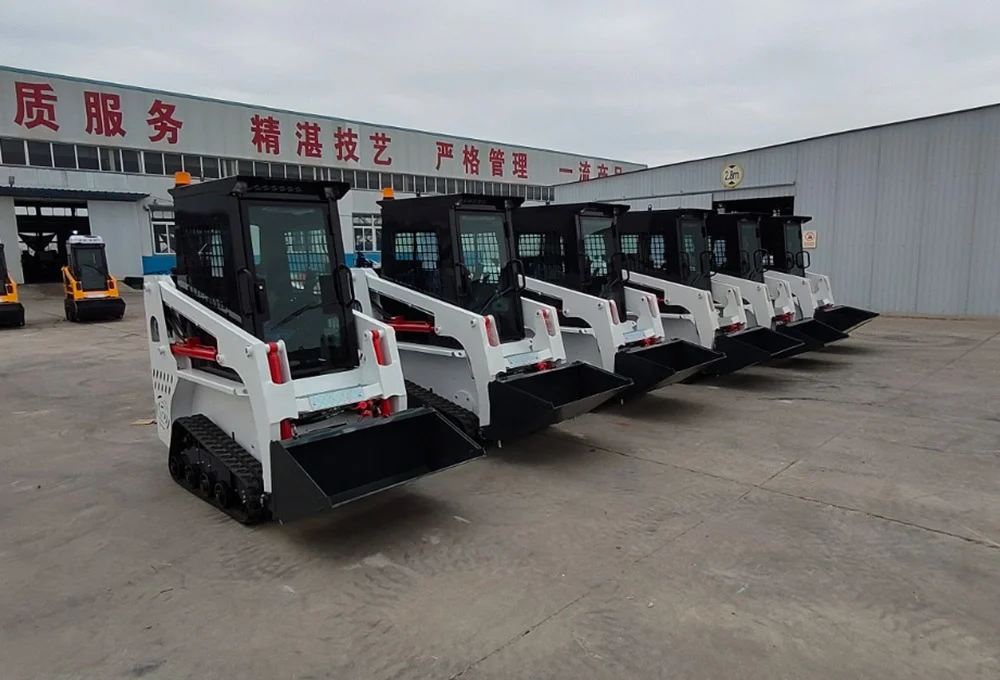

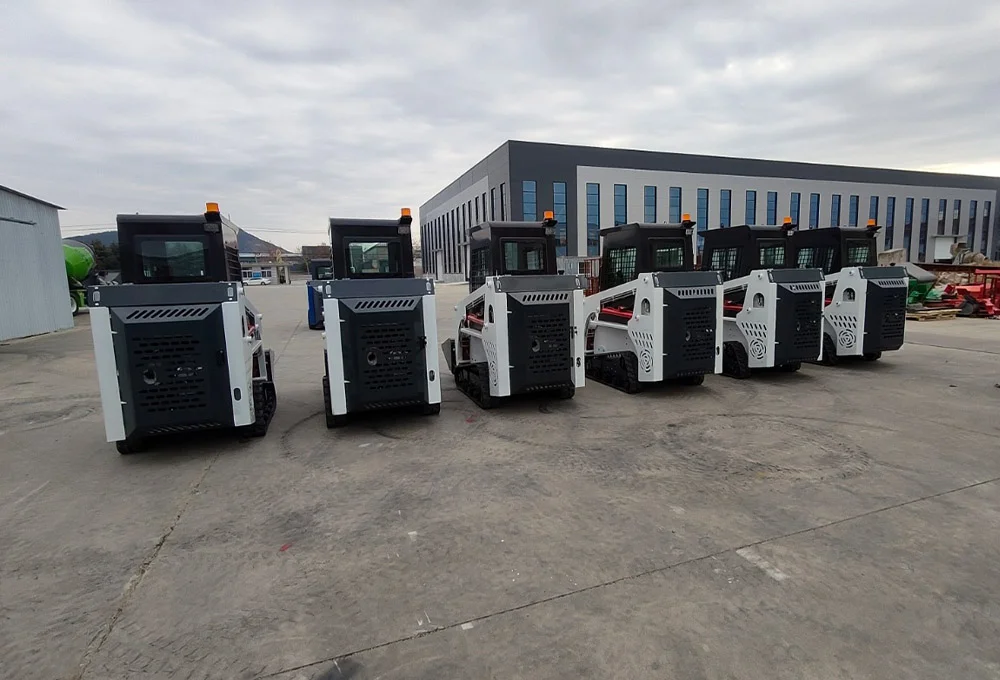

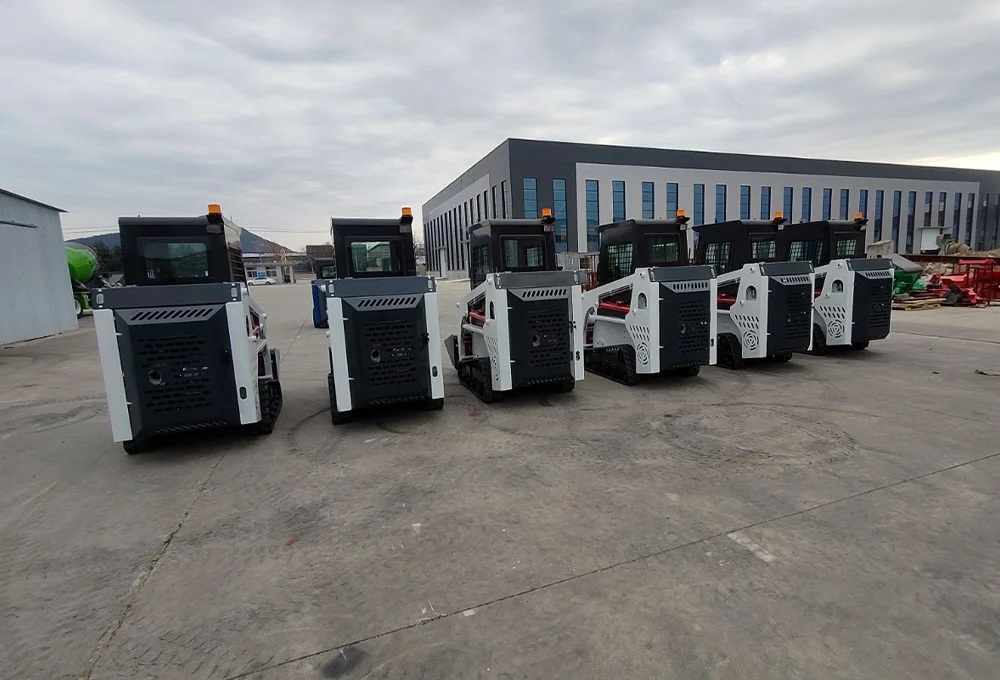

FD25H
FD25H
Small skid steer loaders suit narrow, rugged and frequently changing working sites.
Model: FD25
Engine Options: Kubota D1105/Laidong 385/RATO R999D
Rated Power: 14.2KW/29KW/24.5KW
Standard Speed: 2200rpm/2350rpm/3600rpm
Cylinders: 03/3/2
Aspiration: Natural
Displacement: 1105/1500/999cc
Emission Standard: Euro V/EPA Tier 4
Product Description
Small skid steer loaders suit narrow, rugged and frequently changing working sites.
Ideal for infrastructure construction, industrial operations, dock loading, urban roads, residences, barns, livestock houses and airport runways. It also serves as auxiliary equipment for large construction machinery.
Skid steers come in two travel types: wheeled and tracked.
Product Data
| Model | FD25 |
| Engine Options | Kubota D1105/Laidong 385/RATO R999D |
| Rated Power | 14.2KW/29KW/24.5KW |
| Standard Speed | 2200rpm/2350rpm/3600rpm |
| Cylinders | 03/3/2 |
| Aspiration | Natural |
| Displacement | 1105/1500/999cc |
| Emission Standard | Euro V/EPA Tier 4 |
| Rated Load Capacity | 380kg |
| Max Load Capacity | / |
| Max Breakout Force | / |
| Travel Speed | 9km/h |
| Three-phase Cycle Time | 12.58s |
| Hydraulic System Pressure | / |
| Fuel Tank Capacity | 47L |
| Max Operating Height | 3050mm |
| Height to Bucket Pin | 2580mm |
| Overall Height | 1940mm |
| Dump Reach | 560mm |
| Ground Bucket Rollback | 33° |
| Max Bucket Rollback | 45° |
| Bucket Volume | 0.12m³ |
| Operating Weight | 1450kg |
| Track Model | / |
