This is a heavy-duty model with flexible operation and high working efficiency. It is mainly used for short-distance loading and transportation of sand, gravel, coal and other small and medium-sized bulk materials. Multi-functional with good working condition adaptability and hig

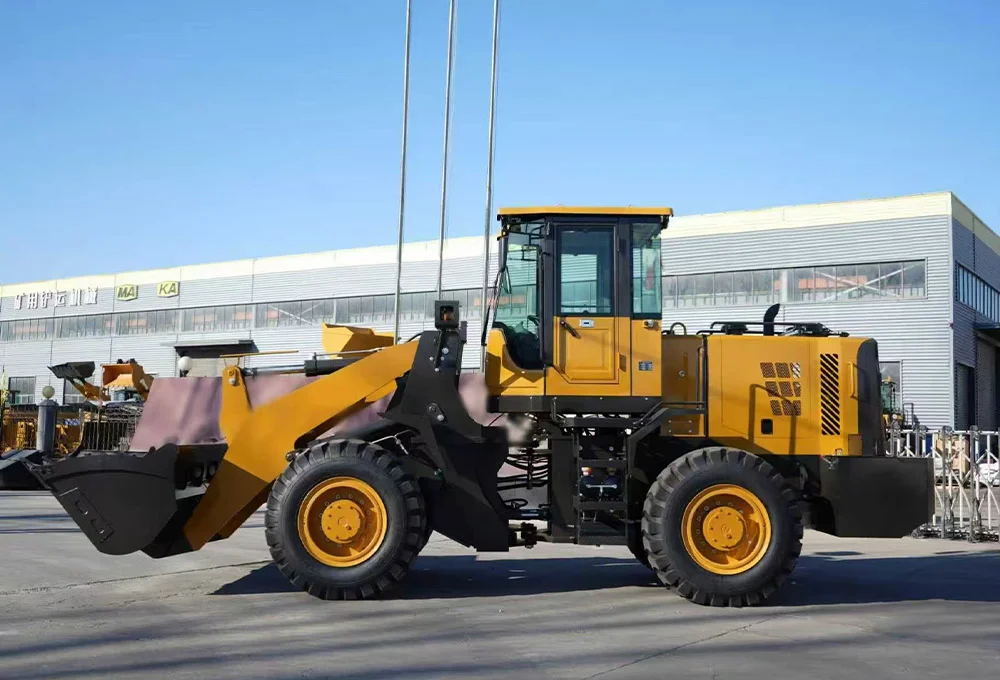

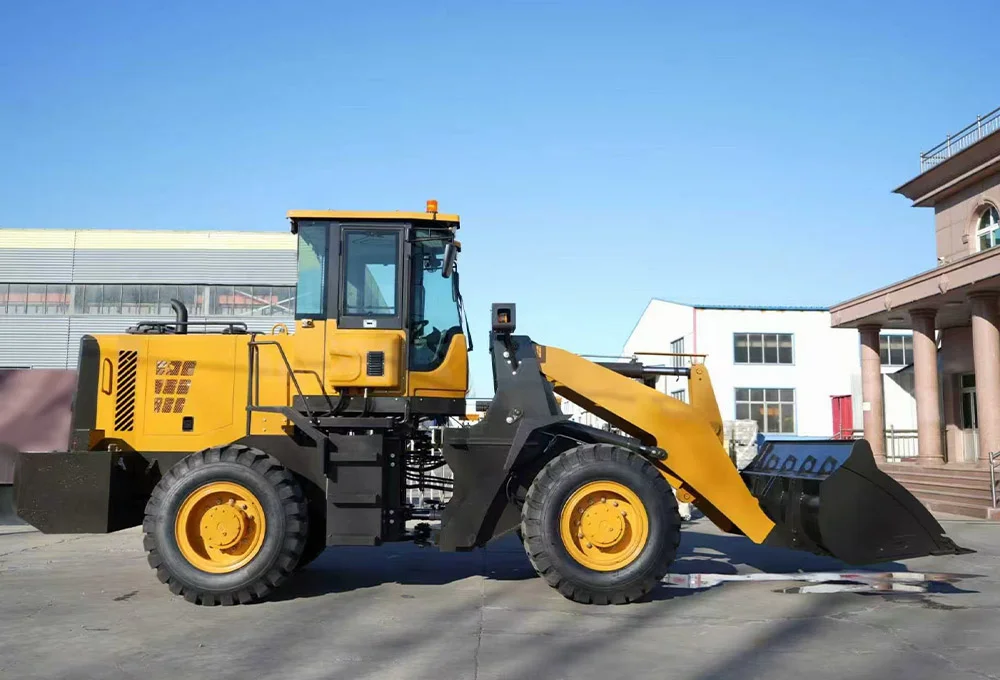

FD40
FD40
This is a heavy-duty model with flexible operation and high working efficiency.
Model：: FD40
Item: Parameters / Unit
Rated load capacity: 4 Ton
Bucket capacity: 2m³
Engine type: Weichai WP6G175E22
Rated power: 129kw-2200r/min
Digging power: 110 KN
Unload height: 3300mm
Product Description
-
This is a heavy-duty model with flexible operation and high working efficiency. It is mainly used for short-distance loading and transportation of sand, gravel, coal and other small and medium-sized bulk materials.
-
Multi-functional with good working condition adaptability and high productivity. It features strong traction and powerful loading capacity, suitable for grading work. With excellent climbing ability and good trafficability, it is more suitable for complex ground conditions. Equipped with various attachments, it can perform grass grabbing, wood clamping, side dumping, snow removing and other operations.
-
The cab features spacious operating space, good sealing, high comfort, excellent visibility and reasonable layout.
-
It is equipped with a 6-way adjustable seat for enhanced comfort, reducing fatigue during long hours of operation.
Product Data
| Model： | FD40 |
| Item | Parameters / Unit |
| Rated load capacity | 4 Ton |
| Bucket capacity | 2m³ |
| Engine type | Weichai WP6G175E22 |
| Rated power | 129kw-2200r/min |
| Digging power | 110 KN |
| Unload height | 3300mm |
| Unload distance | 1195mm |
| Maximum torque | 650N.m/rpm |
| Maximum Traction | 120±5 KN |
| Maximum climbing ability | 30° |
| Drive form | Four-wheel drive |
| Fixed front axle | |
| Rear axle oscillation | |
| Tire specifications | 20.5-25 |
| fuel tank | 168L |
| wheelbase | 2780mm |
| Length of the whole machine | 7460mm |
| Width of the whole machine | 2400mm |
| Height of the whole machine | 3350mm |
| Weight of the whole machine | 11200kg |
| Steering angle | 38° |
| Minimum turning radius of outside wheel centerline | 4880mm |
| Turn radius outside bucket | 5744mm |
| Road brake | Air-over-oil caliper disc brake |
| Parking brake form | Hand-operated brake |
| Cooling mode | Water Cooling |
| Form of steering | Full hydraulic steering with articulated frame |
| Operation Mode | Hydraulic pilot operation |
| Three and | 9.2s |
| Gear setting | F4/R2 |
| Maximum speed | 40Km/h |
| Gearbox form | Standard transmission |
| Form of work | In-line, vertical, water-cooled, four-stroke engine |
