This model features a long wheelbase for heavy-duty operations, with an operating weight of up to 17.9 t (17900 kg). It delivers strong digging force, increased traction and excellent stability. The dashboard, headlights and air filter system have all been upgraded. The machine i

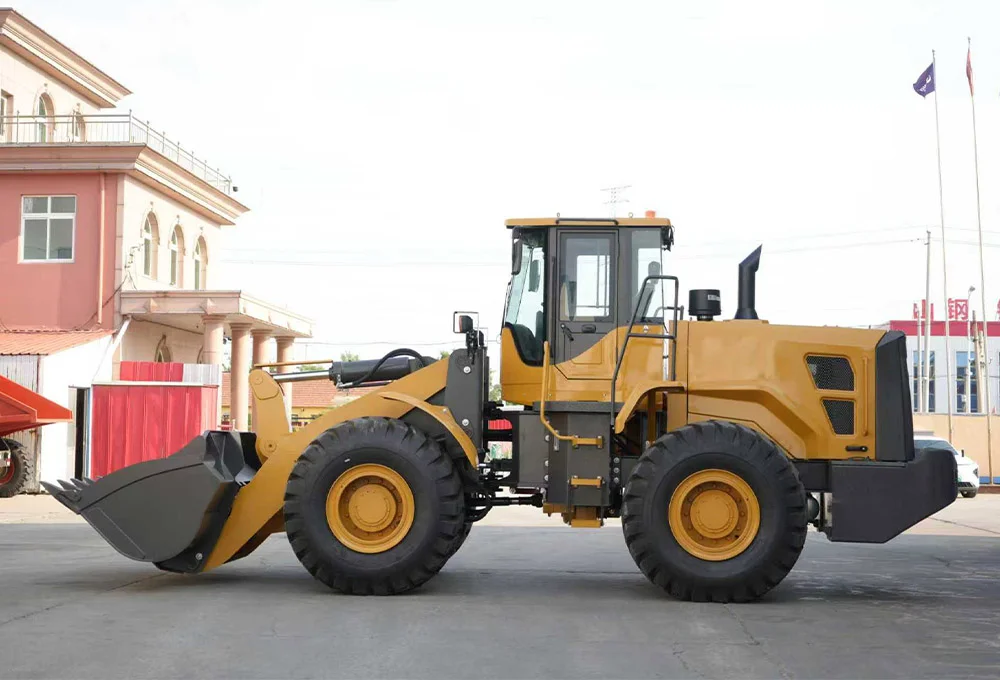

FD50
FD50
This model features a long wheelbase for heavy-duty operations, with an operating weight of up to 17.9 t (17900 kg).
Model：: FD50
Item: Parameters / Unit
Rated load capacity: 5-5.5 ton
Bucket capacity: 3 m³
Engine typ: WD10G220E21
Engine type: Turbo
Rated power: 162Kw-2200r/min
Digging power: ≥170 Kn
Product Description
-
This model features a long wheelbase for heavy-duty operations, with an operating weight of up to 17.9 t (17900 kg). It delivers strong digging force, increased traction and excellent stability.
-
The dashboard, headlights and air filter system have all been upgraded. The machine is equipped with Kunlun -45 antifreeze as standard. It delivers outstanding stability whether handling heavy loads or performing high-intensity operations.
-
This machine has an upgraded appearance, with a new cab and comfortable seats. The operating space is more reasonable, and the pilot control is precise and smooth, which can effectively reduce operating errors and fully bring out the strong performance of the whole machine.
-
It is widely used in steel plants, ports, open-pit mines, coal mines, quarries, and other work sites.
-
It is equipped with an electric shutdown function, which reduces wear and failure risks caused by traditional shutdown methods.
Product Data
| Model： | FD50 |
| Item | Parameters / Unit |
| Rated load capacity | 5-5.5 ton |
| Bucket capacity | 3 m³ |
| Engine typ | WD10G220E21 |
| Engine type | Turbo |
| Rated power | 162Kw-2200r/min |
| Digging power | ≥170 Kn |
| Maximum torque | 920 N.m/rpm |
| Maximum Traction | 175±2 Kn |
| Maximum climbing ability | 30° |
| Fuel tank | 300L |
| Tire specifications | 23.5-25 |
| Wheelbase of the vehicle | 2265mm |
| Wheelbase | 3200mm |
| External dimensions | 8295*3000*3350 mm |
| Unload height | 3400mm |
| Unload distance | 1260mm |
| Lift the heigh | 5220mm |
| Minimum ground clearance | 550mm |
| Weight of the whole machine | 16800kg |
| Steering angle | 28° |
| Three and | 9.8±0.5 S |
| Minimum turningradius of outside wheel centerline | 6000 mm |
| System working pressure | 18MPa |
| Road brake | Air-over-oil caliper disc brake |
| Parking brake form | Internal expanding shoe drum brake |
| Cooling mode | Water cooling |
| Form of steering | Full hydraulic steering with articulated frame |
| Operation Mode | Hydraulic pilot operation |
| Transmission form | Planetary transmission |
| Gear setting | F2/R1 |
| Maximum speed | 42 Km/H |
| Below specifications is optional: -Engine:Cummins/Shanghai Diesel(CAT) -Hvdraulic Svstem:Jinan Hvdraulic/Permco/Eaton -Gearbox:ZF4WG200/WG180 -Axle:Yunyu/Meritor |
|
