It is mainly applied to shovel, load, unload and convey bulk materials including soil and stones. It can also carry out light excavation on rocks and hard soil. By replacing different working attachments, it can realize bulldozing, hoisting and handling of other goods.

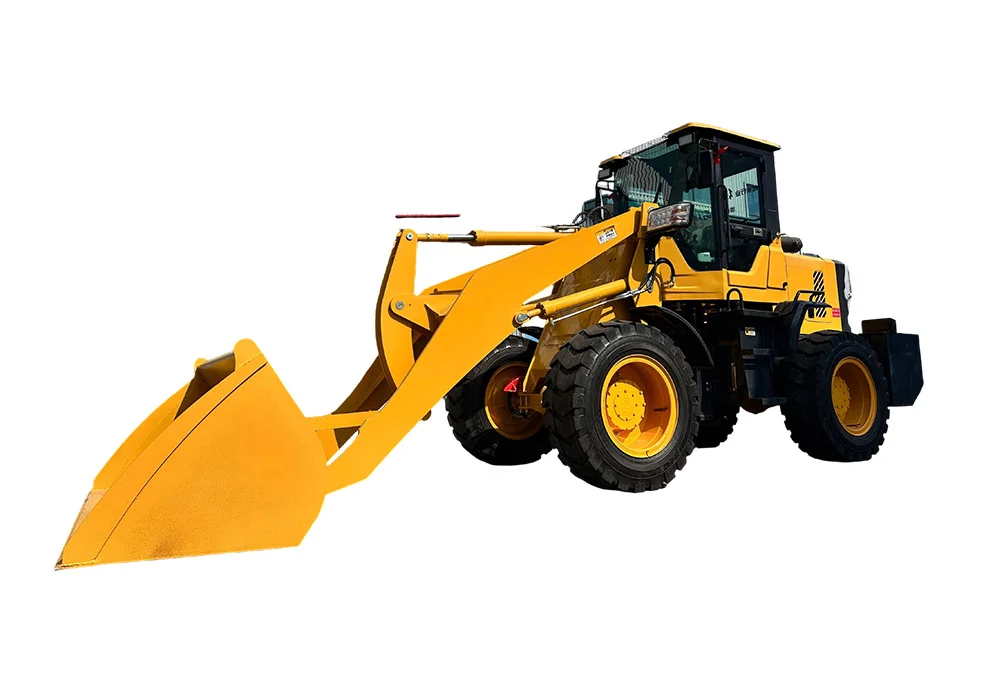

FD25
FD25
It is mainly applied to shovel, load, unload and convey bulk materials including soil and stones.
Operating Weight: 4700KG
Bucket Capacity: 1.2M³
Bucket Width: 2.2M
Travel Speed: 35mph
Fuel Tank Capacity: 80L
Hydraulic Oil Tank Capacity: 80L
Boom Thickness: 30MM
Dumping Height: 3600MM
Product Description
It is mainly applied to shovel, load, unload and convey bulk materials including soil and stones. It can also carry out light excavation on rocks and hard soil. By replacing different working attachments, it can realize bulldozing, hoisting and handling of other goods.
Product Data
| Parameter | Specification |
| Rated Load Capacity | 2500KG |
| Operating Weight | 4700KG |
| Bucket Capacity | 1.2M³ |
| Bucket Width | 2.2M |
| Travel Speed | 35mph |
| Fuel Tank Capacity | 80L |
| Hydraulic Oil Tank Capacity | 80L |
| Boom Thickness | 30MM |
| Dumping Height | 3600MM |
| Wheel Track | 1780MM |
| Wheelbase | 2550MM |
| Maximum Steering Angle | ±30° |
| Climbing Capacity | 30° |
| Minimum Ground Clearance | 320MM |
| Overall Dimensions | 6200*2000* 2950(MM) |
| Engine Model | 4105 Turbocharged Engine |
| Power Output | 88KW |
| Number of Cylinders | 4 |
| Gearbox | 265 Split Gearbox |
| Drive Axle | Central Wheel Reducer Axle |
| Braking System | Pneumatic Braking |
| Tire Size | 16/70-24 |
